SD500-36X-The King of Long-focus-Solar Security Camera
Model: SD500-WiFi 36X
For surveillance tasks where distance is the enemy, the SD500-WiFi 36X is the definitive solution. As a premier security camera factory, we have engineered this camera for one purpose: to deliver uncompromising long-range identification in a completely autonomous, solar-powered package.
This is not just a security camera; it’s a professional remote observation tool. Featuring a powerful 36X hybrid zoom (20X true optical), a sophisticated dual-lens system, and a high-performance “black light” sensor, the SD500-WiFi 36X is built for our B2B partners who need to provide clients with the ability to see forensic-level detail from hundreds of feet away.
Key Features at a Glance:
- Dominating 36X Hybrid Zoom: Combines a powerful 20X lossless optical zoom with a 16X digital zoom for extreme long-range detail.
- Dual-Lens, Dual-Sensor System: A 2.8mm wide-angle lens provides a broad overview, while a 4.9-98mm motor lens handles the powerful zoom, both with 3MP HD resolution.
- “Black Light” Low-Light Performance: The high-performance ISP and 1/2.7″ GC4653 black light sensor deliver exceptional clarity and color in near-dark conditions.
- Massive Power System: A 9W solar panel charges a large bank of 6 built-in 21700 batteries, all protected by an advanced Battery Management System (BMS).
- Intelligent PIR + AI Detection: Advanced algorithms and a PIR sensor work together to accurately detect human targets and eliminate false alarms.
- Flexible Installation: The 9W solar panel can be installed integrated with the camera or separated for optimal sun exposure.
- Multiple Video Modes: Choose from all-day, timed, or alarm-triggered recording to suit any security protocol.
See Further. Know More. Act Faster.
Unrivaled Long-Range Surveillance: 36X Hybrid Zoom
This is the feature that changes everything. The 20X true optical zoom allows you to magnify distant objects without any loss of image quality. It’s the difference between seeing a car and reading its license plate from across a field. Combined with the 16X digital zoom, the 36X hybrid capability gives you the power to identify threats and gather actionable evidence from a safe distance, a task previously impossible for solar-powered cameras.
The Power of Two: Dual-Lens System for Total Awareness
Never lose sight of the big picture. The SD500-WiFi 36X operates like two cameras in one.
- Wide-Angle Lens (2.8mm): Provides a constant 110° overview of your entire property.
- Telephoto Motor Lens (4.9-98mm): Executes the powerful zoom to focus on specific points of interest.
You can monitor the overall scene and zoom in on a suspicious activity simultaneously, giving you complete situational awareness.
Exceptional Clarity in Near Darkness: Black Light Sensor Technology
Powered by the advanced Ingenic-T40N processor and a professional-grade GC4653 “black light” image sensor, this camera pierces through the darkness. It is engineered to produce clear, detailed color video in ultra-low light conditions (0.001 Lux) where standard cameras would only show a grainy, black-and-white image.
Engineered for Autonomy and Endurance
A powerful camera needs a robust power system. The high-efficiency 9W monocrystalline solar panel feeds a massive internal battery bank (6 x 21700 cells), ensuring long-term operation even through extended cloudy periods. The integrated BMS actively manages battery health, protecting against overcharging and maximizing the system’s lifespan.
SD500-36X Product Advantages/Key Wards:
#100% wireless #36X #1000ft long range #PIR motion detection dual recording mode#optical zoome len s#metal case #IP66 outdoor waterproof #4G off grid #wifi wireless #solar-powered #outdoor security camera
SD500-36X Promotion Market and Customer Group Suggestions:
SD500-36X is PRO-level solar security camera, True&real 36X zoom in/out lens, can see face/car plate clearly about 2000ft, can be used for small or middle projects like: like courtyards, farms, orchards, remote mountainous regions, outdoor parking lots, forests, construction sites, mining areas, oil fields, reservoirs, animal farms, plant farms, beaches, yachts/boats, and any no power no network sites, etc.
Solar Security Camera Market: Potential & Business Model Analysis:
Your Factory Partner for High-Performance Surveillance
The SD500-WiFi 36X is a flagship product designed for serious security applications. As your manufacturing partner, we offer:
- Competitive Wholesale Pricing: Access factory-direct pricing for a premium product, ensuring excellent margins for your business.
- Full OEM/ODM Services: We can customize the product with your brand logo, packaging, and app interface to build your market presence.
- Expert Support: We provide dedicated support for our B2B partners to ensure you and your clients succeed.
Offer your clients the power of unparalleled long-range vision. Add the SD500-WiFi 36X to your portfolio.
Contact Us for a Wholesale Quote and OEM Partnership Details
| Product feature | • 36X zoom in/out (20X optical zoom+16X electric zoom) • 3MP+3MP HD double lens • PIR human detection +Ai humanoid detection alarm • High performance ISP+1/2.7″ black light image sensor • Support Two-ways Audio • Supports cloud storage and local SD card storage. • The APP supports Android/ Apple IOS • 9W solar panel can be integrated/separated installation • Built-in BMS protect (BMS=Battery Management System) |
|
| Model | SD500-WiFi 36X | |
| General | Resolution | 3MP+3MP |
| Pixel | 2048*1536P+2048*1536P | |
| Main processor | Ingenic-T40N | |
| Image sensor | GC4653 | |
| APP operate system | Android, Apple IOS | |
| Compressed format | H.265 | |
| Connection type | Wireless 2.4GHz wifi | |
| Lens | Focal length | Wide Angle fxied lens 2.8mm +Motor lens 4.9~98mm |
| Angle | Wide Angle lens 110° + 48° | |
| Alarm mode | Detection mode | PIR Human sensing +AI human detection |
| Detection range | 0-12M | |
| Detection angle | 110°+ 110° | |
| Alarm mode | Real time mobile phone calling or push message | |

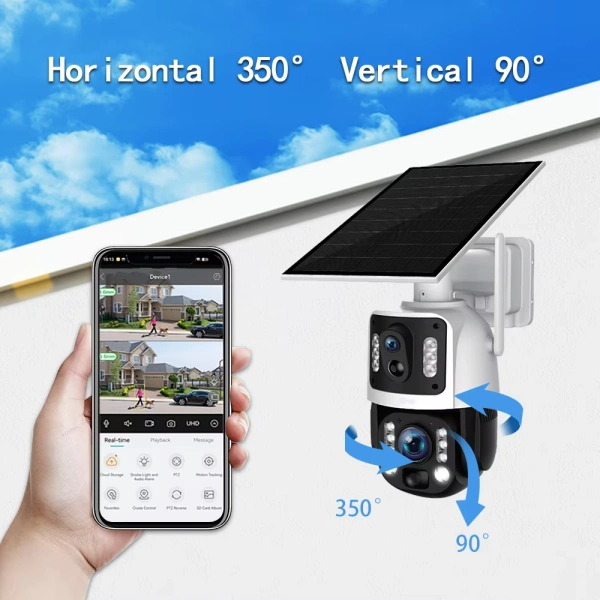

| PTZ | PTZ angle | 355 ° Horizontal and 100° vertical |
| Rotational speed | Horizontal 55°/ s Vertical 40°/ s | |
| Night vision mode | night vision | Illuminance is 0.001LUX |
| infrared light | Infrared LED distance 30M | |
| White light | White LED distance 30M | |
| Voice | Built-in speaker | 3W |
| Built-in microphone | Monitor range 20M | |
| Storage | Video mode | Alarm video/timing video/all-day video |
| Cloud storage | Support | |
| Local storage | Support SD card (Max 128G) | |
| Power | Power supply mode | Solar panel + battery |
| Solar material | Monocrystalline silicon | |
| Solar battery power | 9W | |
| Battery | Built-in 15600mAH | |
| Max working power | 4W | |
| Standby power | 0.003W | |
| Other | Working area | Indoor/outdoor |
| working temperature | -30°~+60° | |
| Working humidity | 0%~90%RH | |
| Package | Net weight | 3.98kg/pcs |
| Box size | 305*283*216mm | |
| Packing quantity | 4pcs | |
| Gross weight | 16.5KG/CTN | |
| Carton size | 577*320*455mm | |
Who we are:
Company name: SHENZHEN RUIBOSI ELECTRONIC CO.,LTD
Where we are:
5F,Bloack B, Shabian industrial park,Sanwei,Xixiang, Bao’an,Shenzhen
-Established: Since 2019
-A national-level high-tech enterprise specializing in solar-powered security cameras R&D, manufacturing, and sales.
-Factory size: 6000㎡
-Employee: 300+
-Research&develop department: 6+ engineers
-Annual sales: 300 million+ RMB
-Product certificates: CE, FCC, ROHS, ISO9001, MSDS, UN38.8, etc.
-Invention patent certifications: 100+
-National high-tech enterprise
What we do:
Specializing in solar-powered security cameras R&D, manufacturing, and sales.
What products and services can we provide for you?
-Solar-powered security cameras wholesale/OEM/ODM/LOGO/Brand customized.
-OEM your own brand for solar-powered security camera products.
-OEM your own LOGO on products.
-OEM your own LOGO on the packing box.
-Customize your own mobile APP.
-Customize your own keypad menu, your language, etc.
-ODM a new series solar solar-powered security camera products.
-ID design for your products, you provide ID design, or we provide ID design, both are available.
-Mold created for your own designed product.
-Contact us and learn more…
Our delivery capacity:
200K-300K PCS/month
300+items for options:
To meet the needs of different markets, customers, and application scenarios,we maintain a large stock of raw materials to ensure a stable supply and fast delivery.
Our core products are regularly stocked, and small quantity sample orders can be shipped within 1–3 working days.
Multiple global 4G versions are available in stock at all times, compatible with 99% of 4G bands worldwide, including the USA, Japan, Europe, Asia, Australia and Canada,etc.
Our products certificates:
CE,FCC,ROHS,MSDS,UN38.8,ISO9001, Identification and Classification Report for Transport of Goods，4G LTE related certifications
Our solar camera applications:
Such as homes, courtyards, farms, orchards, remote mountainous regions, outdoor parking lots, forests, construction sites, mining areas, oil fields, reservoirs, animal farms, plant farms, beaches, yachts/boats, and any no power no network sites, etc.
We are actively seeking long-term global B2B clients and partners.
If you are a 4G network operator, brand owner, wholesaler, dealer, distributor, system integrator, agent, retailer, or an Amazon/eBay seller — we warmly welcome you to contact us for a live product demonstration and pricing information.
Let’s join hands in advancing the solar-powered security camera industry, bringing 100% off-grid video surveillance to areas without electricity or internet access, and contributing to the development of clean, green energy worldwide.
Our factory&production equipments:
Our certificates:
FAQ:
Q: How to order it?
A: 1,Please send us your inquiry. 2,Quotation in 24H 3, Confirm quotation, 4 Create&confirm PI 5,Payment 6,Delivery goods
Solar Security Camera OEM/ODM Partnership Guide
Q: What’s your price term?
A: FOB-Shenzhen
Q: How to pay for it?
A: T/T(Bank wire), PayPal, Western Union, Alipay, WeChat pay, cash, etc.
Q: What’s the lead time?
A: 2-5days for samples, 5-15days for bulk orders.
Q: What’s the warranty?
A: 12-months warranty for our products.
Q: Can you provide technical support?
A: Yes, We will help you with setup, Application, Replacement, Repair, etc.
Q: Can you support OEM/ODM/software/APP/gift box/LOGO customize service?
A: Yes, OEM/ODM/software/APP/gift box/LOGO customize is welcomed.
Q: How to choose 4G version, WIFI version solar camera?
A: No WIFI, no power, choose 4G version solar camera.
Have WIFI, no power, choose WIFI version solar camera.
Q: How to ship?
A: Shipping by SEA, by AIR, by international express like FedEx, DHL, Aramex, and UPS door to door,
By SEA about 25-35days, by AIR about 2-3days, by international express about 3-8days.
Q: What’s the after-sale service and support?
1.Our leadership team brings 10 to 20 years of experience in the security monitoring industry, They have developed a comprehensive SOP workflow, conduct regular employee training, and mentor staff to enhance their skills.By combining advanced automated production equipment with rigorous management standards, they ensure consistent product quality and a high qualification rate.
2. 90% issues can be solve by reset
3. 90% issues can be solve by upgrade firmware/software
4. Other hardware issues can be solve by replacement parts
